EV Charger Installation & Solutions in Sydney
Explore our EV charger options, installation packages and smart charging solutions for Sydney homes and businesses.
| Feature | Tesla Wall Connector Gen 3 |
Sungrow AC22E-01 |
Sigenergy Sigen EV AC |
SolaX Smart EV Charger G2 |
|---|---|---|---|---|
| Charging Power | Up to 22 kW AC 7.4 kW single-phase; maximum output depends on the vehicle and site supply. | 7 / 11 / 22 kW Single-phase or three-phase, depending on configuration. | 7 / 11 / 22 kW Single-phase and three-phase models available. | 4.6 / 7.2 / 11 / 22 kW Single-phase and three-phase models available. |
| Dynamic Load Management |
Available
Requires a compatible Tesla-approved power meter which is sold individually. |
Available requires a compatible smart meter which is included in the box. |
Available
Requires a Sigen Power Sensor which is sold individually. |
Available
Requires a compatible CT, meter or SolaX energy system which is included in the box. |
| Scheduled Charging |
Yes
Charging schedules can be managed through the Tesla App. |
Yes
Scheduled and customised charging modes are supported. |
Yes
Charging periods can be scheduled through the mySigen App. |
Yes
Supports Green, Eco and Fast charging modes. |
| Monitoring & Control | Tesla App with Wi-Fi connectivity, charging history and access control. | iSolarCloud or iEnergyCharge App, RFID, Wi-Fi, Ethernet, 4G and RS485. | mySigen App, RFID, automatic charging, WLAN, Ethernet and 4G. | SolaXCloud App, RFID, Wi-Fi, Ethernet and optional 4G. |
| Weather Protection | IP55 Suitable for indoor and outdoor installation. | IP65 Suitable for indoor and outdoor installation. | IP65 / IK10 Water, dust and impact-resistant construction. | IP65 plug / IP54 socket IK10 housing and IK08 display. |
| Product Warranty | 4 years residential Commercial-use warranty conditions may differ. | 3 years | 3 years | 3 years Subject to the applicable Australian warranty terms. |
| AC/DC Fault-Current Detection | Integrated Type A AC and 6 mA DC residual-current detection. | Integrated 6 mA DC fault-current detection. External Type A RCD protection is required in accordance with the installation instructions. | Integrated 30 mA AC and 6 mA DC residual-current detection. | Integrated 30 mA AC and 6 mA DC current-leakage protection. |
| Surge Protection |
Site assessment
External surge protection may be required as part of the installation design. |
Available
Surge-protection requirements must follow the installation manual. |
Available
Confirm the exact model and upstream protection requirements. |
Available
Confirm the exact model and upstream protection requirements. |
| Cable / Outlet | 7.3 m Tethered charging cable. | 5 m standard 7 m cable version or socket version may also be available. | 5 m tethered version Socket version uses a separate charging cable. | 6.5 m tethered version Socket version uses a separate charging cable. |
| Type 2 Compatibility | Type 2 connector; compatible with Tesla vehicles and most Australian Type 2 EVs. | Type 2 connector or socket, depending on model. | Type 2 connector or Type 2 socket with shutter. | Type 2 plug or Type 2 socket compliant with IEC 62196. |
* Maximum charging power depends on the vehicle’s onboard charger, available electrical supply, circuit capacity and commissioning settings. Product specifications and warranty conditions may vary by model and Australian distributor.

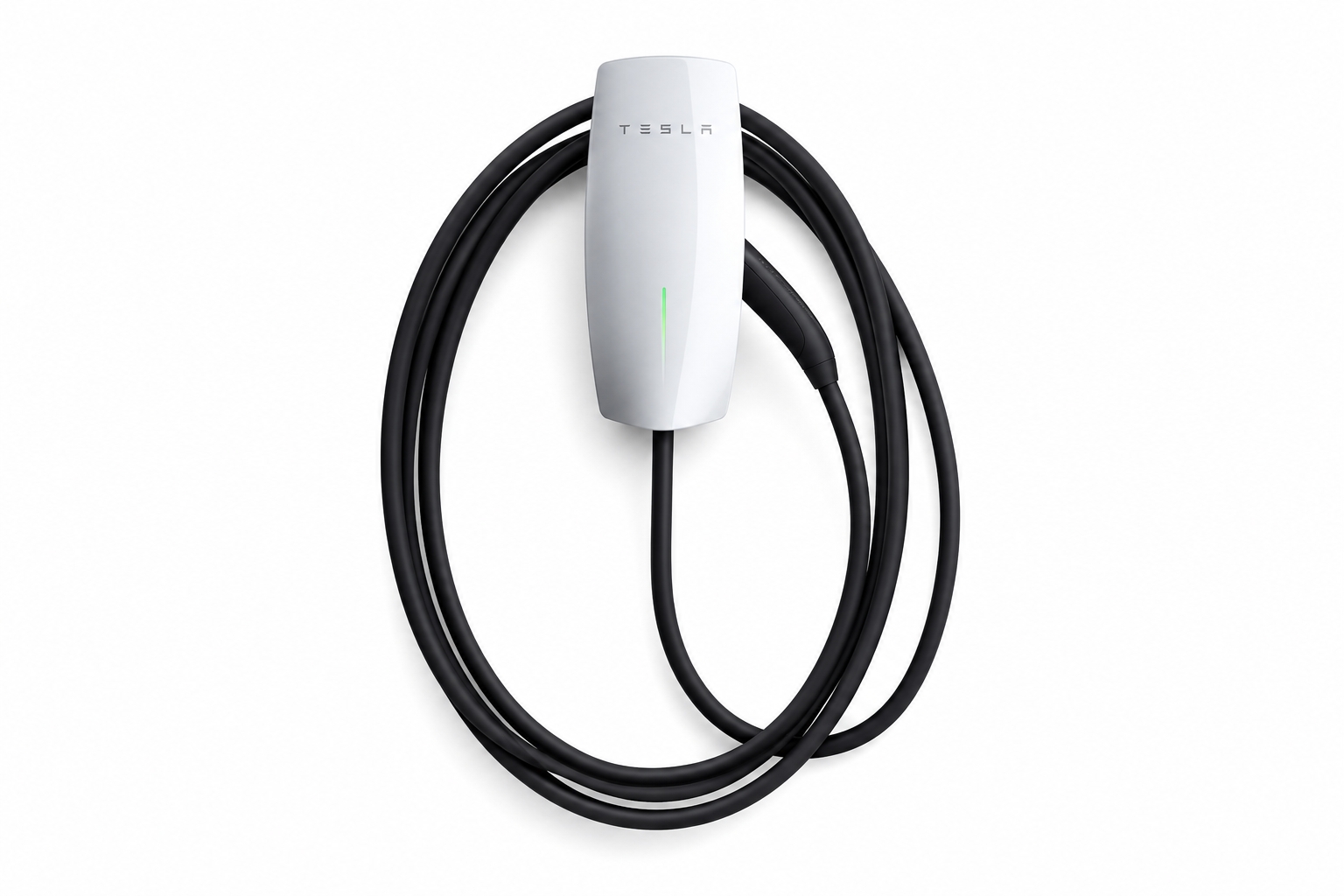

GEN3 Wallconnector

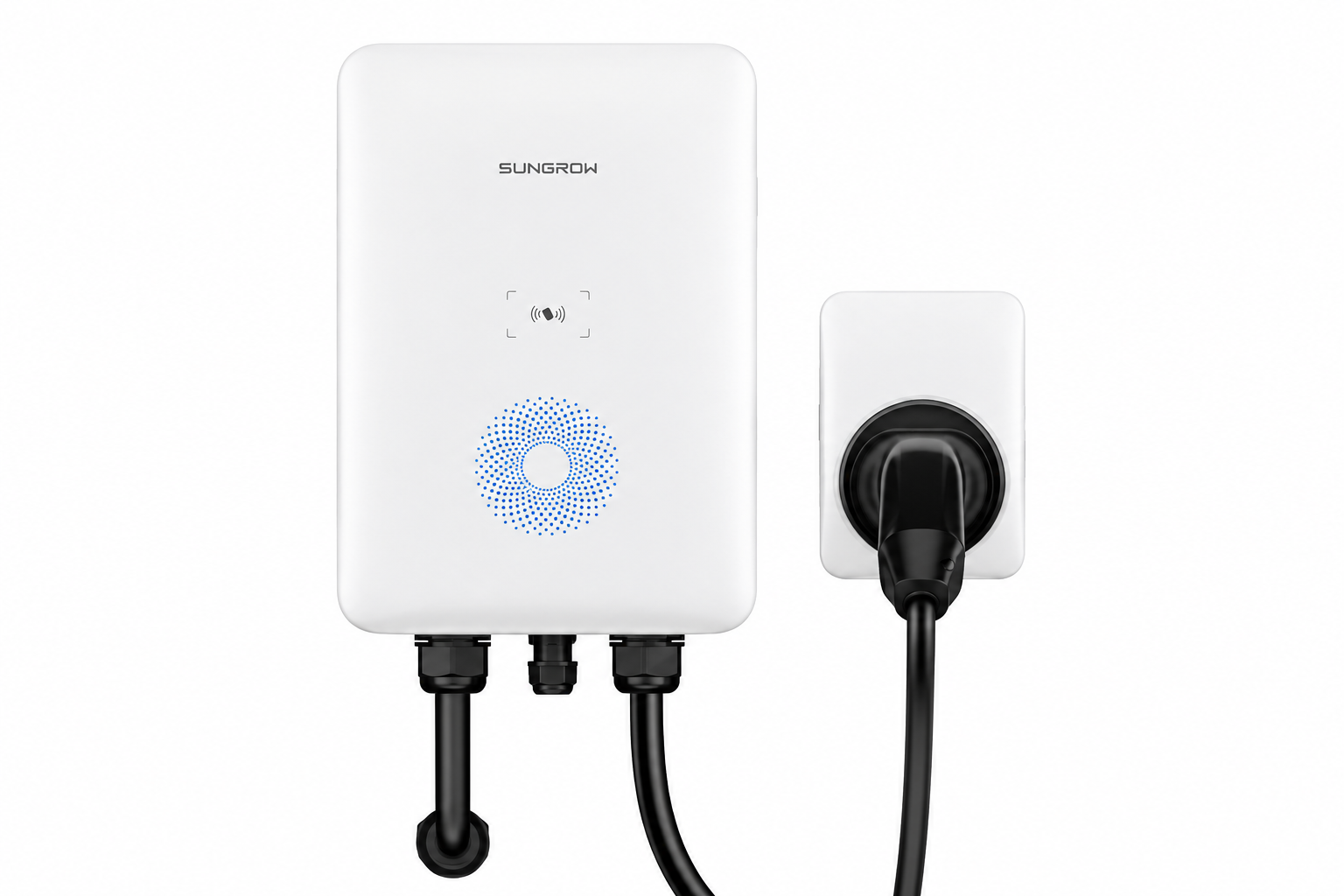

Sungrow AC22E

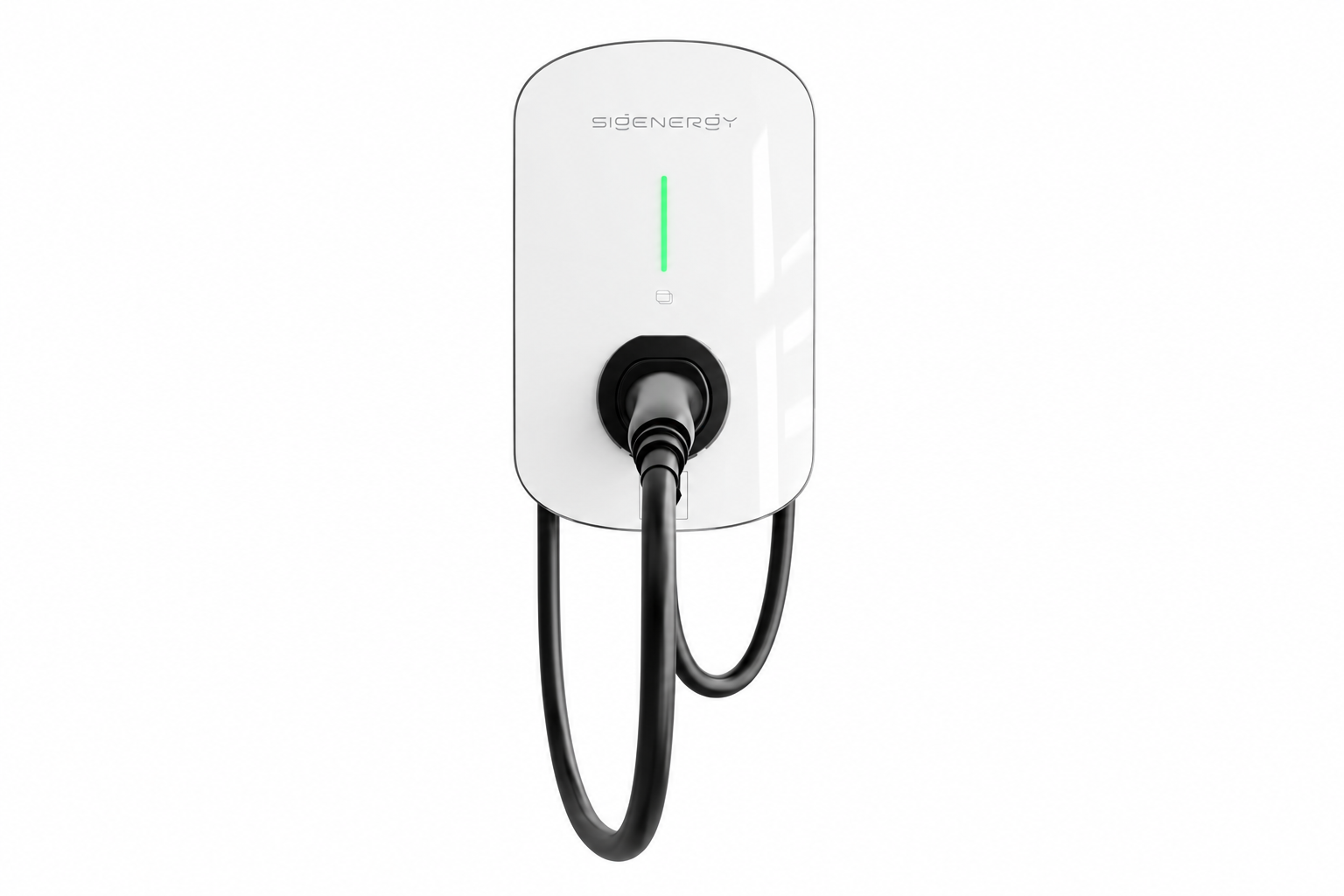

Sigenergy EV AC
